Quick Summary
- Application: Quality control (QA) and forensic damage assessment of composite roofing (hail impacts, thermal wear, fiber degradation)
- Equipment: Dino-Lite EdgePLUS 8MP Digital Microscope
- Magnification: 20x – 220x
- Key Features: Extended Depth of Field (EDOF), Measurement Software
- Primary Outcome: High-resolution visual documentation ranging from wide-field granule sizing to 220x micro-inspections of reinforcing fibers across uneven surfaces.
Inspecting asphalt composite roofing materials, whether shingles, tiles, or rolled membranes, is critical across both manufacturing and field assessment. For quality assurance teams, verifying granule embedding and fiber distribution ensures long-term weather resistance. For forensic engineers and insurance adjusters, high-magnification visual proof helps distinguish storm damage (like hail impacts) from normal weathering or manufacturing defects.
While material analysis is best left to roofing professionals, our technical team put asphalt composite samples under an 8MP Dino-Lite EdgePLUS scope to test how our optics, lighting, and EDOF features handle rough, multi-layered 3D surfaces.
Inspection Setup
- Equipment: AM8917MZT Dino-Lite EdgePLUS 8MP Digital Microscope
- Magnification Range: 20x – 220x
- Key Features Used: Extended Depth of Field (EDOF), On-Screen Measurement Tools
- Stand: Dino-Lite RK-10 Precision Stand
Key Visual Observations

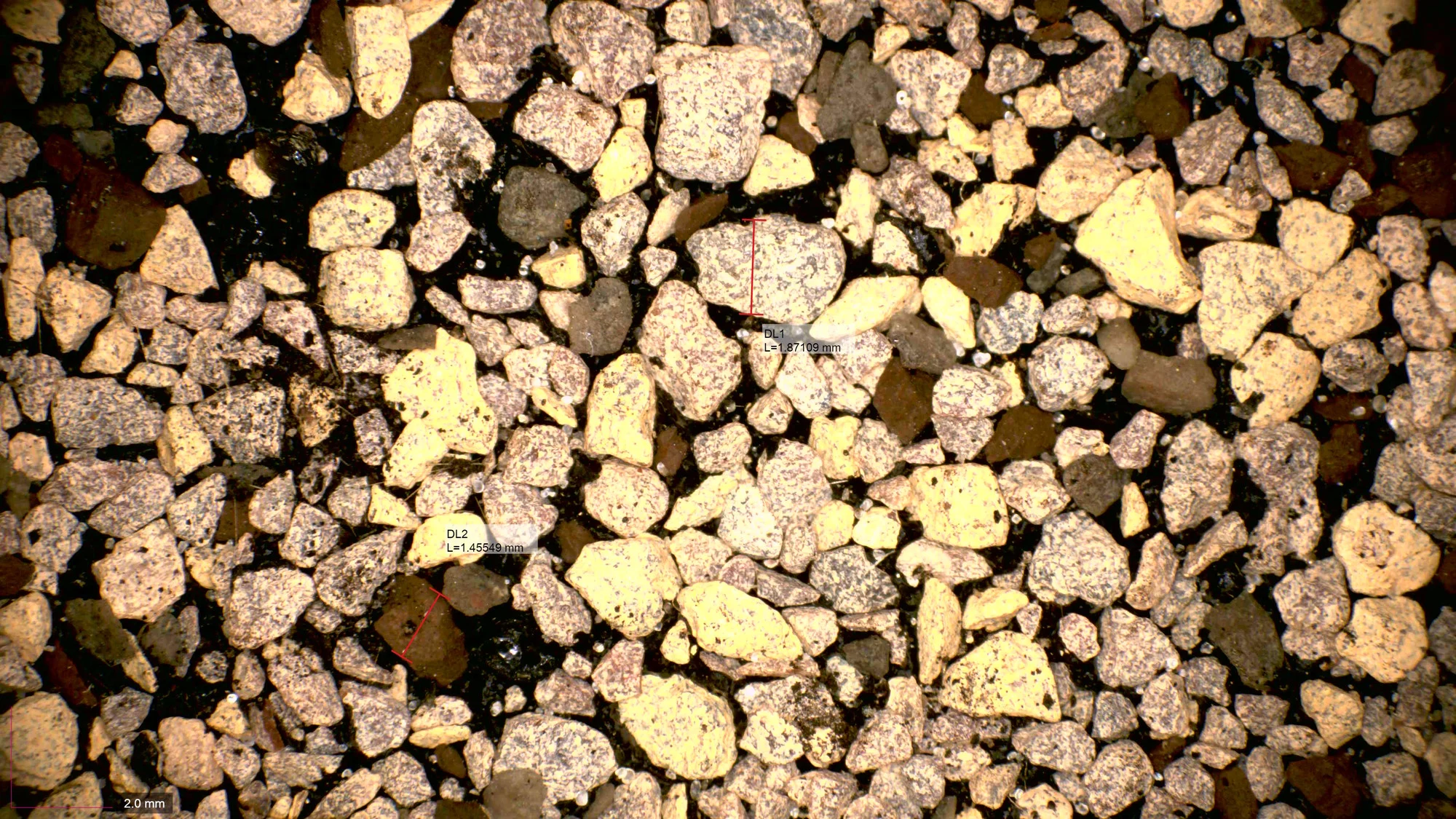

- Wide-Field Granule Sizing (20x): Using the included software tools, individual mineral granules can be measured directly on-screen (e.g., 1.4 mm – 2.0 mm) to evaluate sizing consistency and check for granule shedding caused by wear or storm impacts.
- Reinforcement Mat Exposure (22x – 50x): Fractured cross-sections cleanly reveal the underlying fiberglass reinforcement matting embedded beneath the asphalt binder.
- Extended Depth of Field (EDOF): Rough, uneven roofing surfaces make standard microscopic focus difficult. Dino-Lite EDOF automatically stacks multiple focal planes to keep both deep reinforcement fibers and raised top granules sharp in a single image.
- Micro-Fiber Detail (~220x): Zooming in to 220x magnification reveals individual fiberglass strand geometry, allowing technicians to inspect matrix bonding, micro-fractures, and fiber pull-out at the microscopic level.
See Dino-Lite in Action
Whether you are performing lab testing or documenting insurance claims in the field, Dino-Lite digital microscopes provide fast, portable visual proof. Contact our team to set up a live web demonstration or arrange sample testing.
