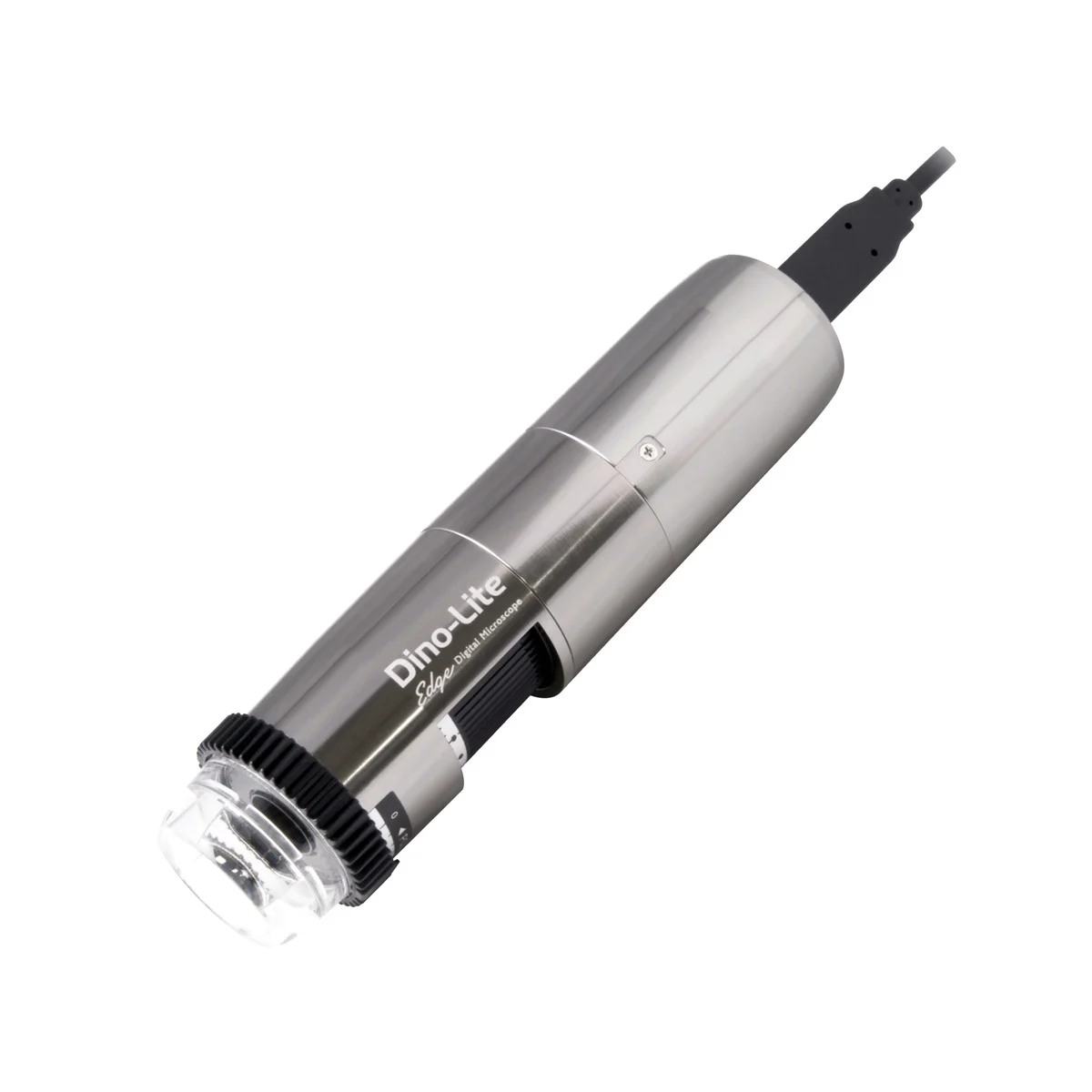

The Dino-Lite Edge^PLUS AM83917MZT is a high-performance 8-megapixel USB 3.0 digital microscope engineered for high-precision inspection, quantitative analysis, and detailed documentation. Utilizing a high-speed USB 3.0 Type-C interface, it streams fluid, uncompressed YUY2 live video with exceptional color fidelity at frame rates up to 15 fps at full 8MP resolution.

• 8MP High-Speed USB 3.0: Delivers uncompressed 8MP imaging (3840 x 2160 at 16:9 aspect ratio) at 15fps, or up to 60 fps at 2MP, providing lag-free live viewing of fine surface details.
• Extended Depth of Field (EDOF): Automatically captures and stacks multiple focal layers into a single, fully focused image of complex 3D surfaces with a single click.
• Depth Acquisition (DPQ): Utilizes refined focus control to capture accurate depth data for evaluating surface textures and height variations.
• Automatic Magnification Readout (AMR): Automatically detects and logs current magnification levels into the software, eliminating manual entry errors and ensuring accurate measurements.
• Enhanced Flexible LED Control (eFLC) & Polarizer: Features 32-level brightness adjustments across two independent LED quadrant groups, paired with a built-in adjustable polarizer to suppress reflection and glare on reflective surfaces.
• Auto & Manual Refocus: Fine-tunes focus directly through software using simple mouse inputs (clicking points of interest or scrolling).
• Extended Dynamic Range (EDR): Combines multiple exposures to reveal hidden details in severe shadows or bright highlights on high-contrast targets.
• Anodized Aluminum Housing: Constructed with a rugged metal alloy casing that provides durability against physical impacts while delivering electromagnetic interference (EMI) shielding.
